The Jaguar II PCB

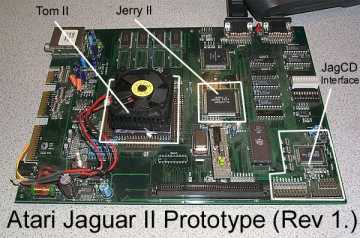

This is the "Jaguar II" prototype PCB. You'll notice, there is a second DRAM-bank on the board; but it's empty...

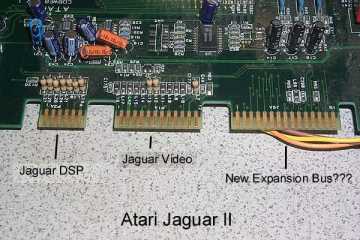

These are the expansion-ports of the "Jaguar II". What is / was the new expansion-bus for?

Images provided with permission from:
The Atari Historical Society
