Jaguar 64 PCB-layout

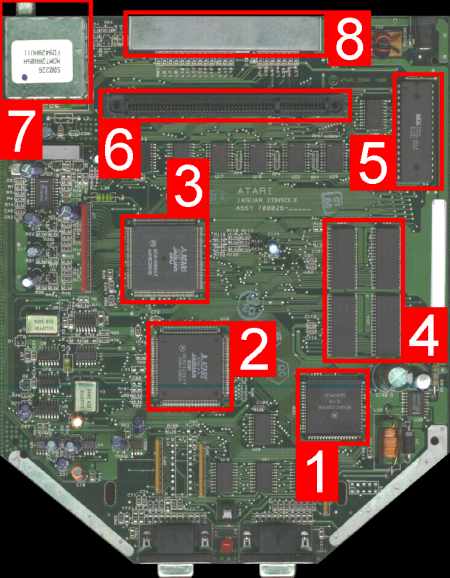

This is the Jaguar's PCB. You'll notice, it's more complex than the 2600... ;-)
The shown PCB is an NTSC-version; it has a red led. PAL-Jaguars have a green one (just between the controller-ports).

Description:

1) Motorola 68000
2) "Jerry" custom chip, DSP (have a look below)
3) "Tom" custom-chip, main CPU (have a look below)
4) Two MB of DRAM
5) Boot-ROM chip; provides bootstrapping sequence
6) 32bit cartridge slot (also JagCD connection, cartridge port is "passed-through")
7) TV modulator
8) I/O port (DSP / AV / all peripherals, except CD-ROM)

Watch the Jaguar's block-diagram here!

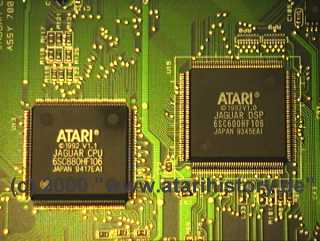

On the left, you see the "main" Jaguar-CPU ("Tom"),
on the right there's the Jaguar-DSP ("Jerry")
