Portfolio "PC Card Drive"

This is the Portfolio's "PC Card Drive". It was used to program the external RAM-cards via a special cable and a 16bit ISA-card from/to any standard IBM-compatible PC! The file-transfer-program was stored on a 3,5" floppy-disk.

Visit the library-section to download the manuals as PDF-file!

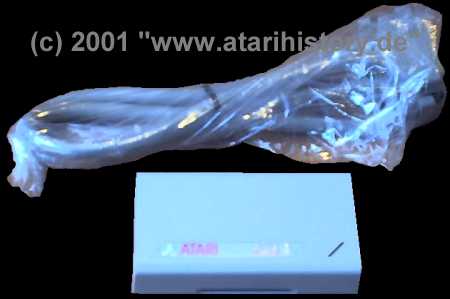

This picture shows the unpacked "PC Card Drive" and the connection-cable from the drive to the ISA-card (shown below).!

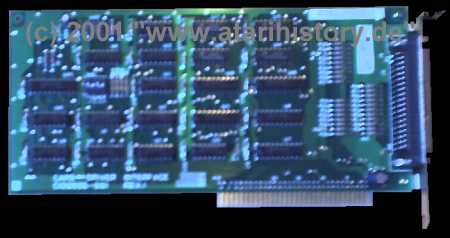

This is the 16bit ISA-card shipped together with the "PC Card Drive". It only uses standard ICs and therefor is very easy to repair - if defective.

Sorry for the bad photos; new ones are coming soon!
