EH0102/3:Atari 8 Bit AV Cables   $17.00/$22.00

More Details:

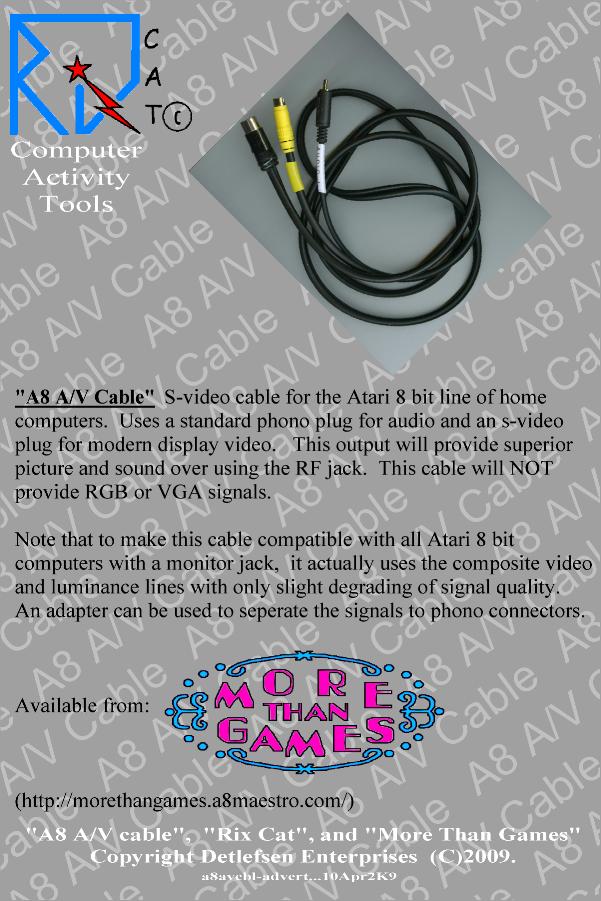

This cable uses a standard phono plug for audio and provides an s-video plug.

Push the phono cables in with a slight twist. Remove with a slight twist as well. Use care to hold the s-video cable the right way, usually with the flat side up.

The 8 bit monitor plug inserts into the jack (on the right side or center back) with the 5 pins at the bottom.

This video output will provide a superior picture over using the RF jack on the 8 bit console.

Note that some 8 bit models do not have monitor jacks. And some with the jacks do not have the chroma line connected. These cables are wired to jumper composite video to chroma, providing a signal suitable for s-video, although of lower quality than using an actual chroma signal, useable on any Atari 8 bit computer.

Also, this cable will NOT provide RGB or VGA signals. These signals are not present on the 8 bit monitor jack.

ORDERING(all funds US$):
8 bit Atari AV Cable #EH0102($17.00) EH0103($22.00) QTY 1
PAYPAL Mail Order
EH0102
6' cable		 EH0103
12' cable		 EH0102
6' cable		 EH0103
12' cable
Ship in US except Texas:
Price(1): Price+ship/hand+PP Fee
 Total $25.44
Total $35.70
Total $24.39 Total $34.35
Ship in Texas:
Price(1):above+Sales Tax
 Total $27.14
Total $38.63
Total $26.04 Total $37.19
Ship in CANADA
Price(1):above
 Total $31.46
Total $40.51
Total $29.85 Total $38.55
Ship Elsewhere:1stI
Price(1):above
 Total $31.46
Total $46.96
Total $29.85 Total $44.75
Ship Elsewhere:PMI
Price(1):above
 Total $47.48
Total $77.22
Total $45.25 Total $73.85

(1stI=First Class International(NO INSURANCE!), PMI=Priority Mail International(Usually Faster & INDEMNITY Included!))
(Mail Order Note:Money Orders and Cashiers Checks process faster than personal/business checks.)

Please ask FIRST:
Shipping elsewhere, Adding Insurance, Multiple items, Questions.
Get info BEFORE ordering.

By MAIL
Check, Money Order, Cashiers Check(DO NOT SEND CASH)
More Than Games
8207 Briarwood Lane
Austin TX 78757

THERE IS A LIMITED WARRANTY ON THE PRODUCT THEMSELVES,
NOT ON ANY DAMAGED CAUSED BY THE USER OR THE PRODUCT. IF YOU HAVE ANY PROBLEMS, CONTACT US.
IF YOU HAVE ANY PROBLEMS SCRATCH BUILDING IT YOURSELF, WE WILL TRY TO HELP.



All advert pages copyright (C) 2013 More Than Games.
We reserve the right to make updates and corrections at any time without liability.
