EH0140 SDrive Bay Mount version More Details: This version mounts in a disk drive case. It uses a removeable drive tray so the SDrive is portable. See SDrive Regular for more info. Available:The led/switch board, 1" x 4", is meant to allow for the leds and switches to be placed anywhere other than the main board, as in a version built inside the computer itself. Here.

Regular Version	Bay Mount	Parts List	Assembly	Pictures	Notes on Programming	Notes on Using REV:02Jun09
Overview	Mounts in a drive bay case Pictures	What I used		labels, templates, schematic, pcb

ORDERING for SDrive Bay Mount. (All funds US$, most info for US and Canada only):
See below for Mail Ordering.
Using PAYPAL, Easy Click.

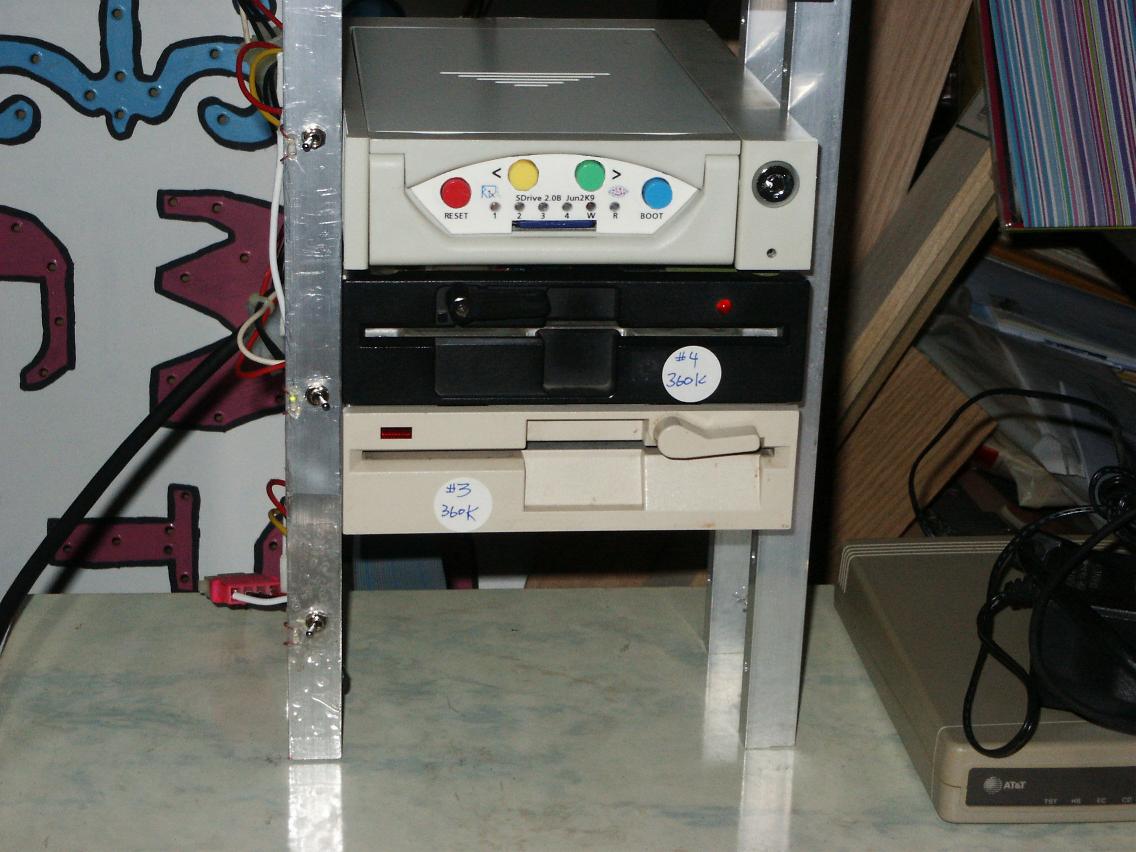

Assembled Bay Mount SDrive

Case used may vary from picture above.

Assembled+Tested #EH0140 QTY 1
EH0140:Still working on this item.

Above item as a Kit

Parts, case, & label: #EK0140 QTY 1
EK0140:Still working on this item.

OR

Parts:+sio jack, no case or label: #EK0141 QTY 1
EK0141:Still working on this item.

Other Kits available

LED/Switch pcb with parts(leds,switches,resistors,caps,wire): #EK0142($****) QTY 1

	PAYPAL	Mail Order
Ship outside of Texas:	Total $****	Total $****.
Ship in Texas:	Total $****	Total $****.
OUTSIDE of US and CANADA using method TBD	(Total TBD).	(Total TBD).

Other Parts available

Just the three PCBs, cut and drilled #EP0140($18.00) QTY 1

	PAYPAL	Mail Order
Ship outside of Texas:	Total $21.95	Total $21.00.
Ship in Texas:	Total $23.74	Total $22.74.
OUTSIDE of US and CANADA using method TBD	(Total TBD).	(Total TBD).

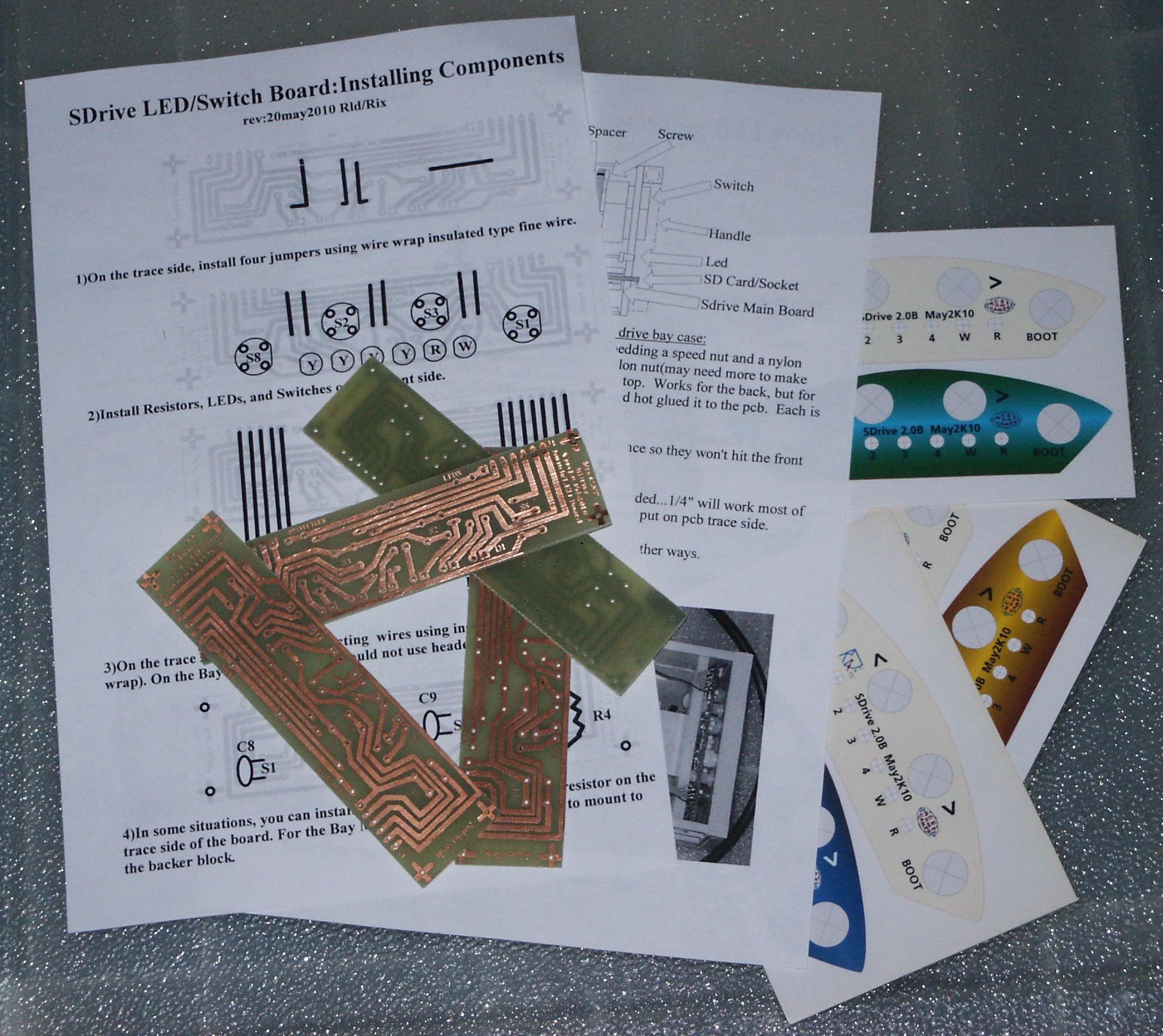

Just the LED/SW PCB, cut and drilled #EP0142($6.00) QTY 1

		PAYPAL	Mail Order
	Ship outside of Texas:	Total $8.56	Total $8.00.
	Ship in Texas:	Total $9.24	Total $8.67.
	OUTSIDE of US and CANADA using method TBD	(Total TBD).	(Total TBD).

Note that these pcbs are home made. They may contain trace repairs as needed, but might require more. The better boards are reserved for your assembly, but do a continuity trace check first.

THERE IS A LIMITED WARRANTY ON THE PRODUCT THEMSELVES,
NOT ON ANY DAMAGED CAUSED BY THE USER OR THE PRODUCT. IF YOU HAVE ANY PROBLEMS, CONTACT US.
IF YOU HAVE ANY PROBLEMS SCRATCH BUILDING IT YOURSELF, WE WILL TRY TO HELP.


Please ask FIRST:
Shipping elsewhere, Adding Insurance, Multiple items, Questions.
Get info BEFORE ordering.

Mail payment to:
More Than Games
8207 Briarwood Lane
Austin TX 78757


All advert pages copyright (C) 2009 More Than Games.
We reserve the right to make updates and corrections at any time without liability.
